Corrigan can create an optimal environment for curing and storing concrete specimens in moist rooms.
Download UltraMist™ Moist Room Control Flyer Download VaporPlus™ Concrete Curing Flyer

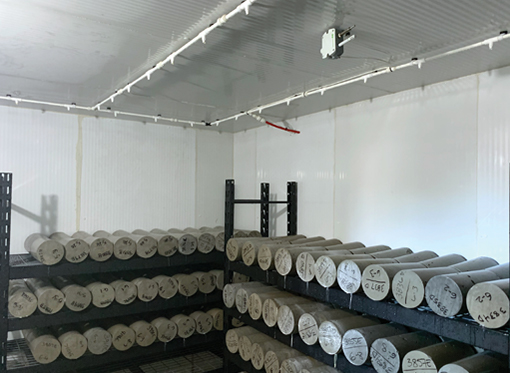

UltraMist™ Moist Room Control systems utilize high efficiency misting technology to control temperature and humidity levels.
UltraMist Moist Room Control Benefits
- Controls temperature to 23+/-2°C per ASTM C511
- Maintains a relative humidity level of not less than 95%
- Keeps core samples looking and feeling moist
- High efficiency system reduces water usage
- All required parts are included. Easy to install.
- Temperature and Humidity Data Logging
Facility Requirements
- 120V 60HZ 20 amp outlet within 4 feet of the control panel
- Dedicated 40‐gallon water heater set to a minimum of 125°F
- Hot and cold water plumbed near the control panel
All Moist Room Control Required Parts Are Included
Control Panel
- A programmable logic controller (PLC)
- LCD touch screen
- Heated probe temperature and humidity sensor
- Sediment filtration to prohibit nozzle clogging
- Two solenoid valves for hot and cold water
Mist Bar
- UltraMist mist bar and nozzles are proven reliable since 1979
- The 1/2” OD bars are easily connected with push-fit technology
- Fifty‐two feet of mist bar is provided. A nozzle is located every foot.
- The provided mist bar and nozzles cover a typical 10’ x 15’ room
Moist Room Control Options

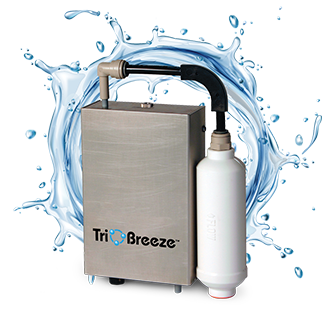

TriOBreeze™ Activated Oxygen Technology
Corrigan’s TriOBreeze is natural and chemical free, with no maintenance.
For customers who want to stop unwanted mold from growing in concrete moist rooms.
Using Corrigan’s activated oxygen (O3) technology with UltraMist effectively destroys the protective outside layers and replication capacities of molds, then converts back down to regular oxygen – leaving no toxic residuals.
Chiller System
For customers who may have a cold-water supply that gets above 65°F.
This system only cools your cold-water supply. The Moist Room insulation needs to be R25 rated, no greater than a 20°F temperature difference between inside and outside the room, no open windows/doors, and no operating HVAC duct work fighting the Moist Room Control.
Remote Monitoring
Annual data fee required.
The PLC features remote access capabilities, enabling system monitoring and control from anywhere, with email alerts providing notifications of any alarms.
VaporPlus™ humidification systems utilize air atomization technology to produce a fine vapor fog that maintains high humidity requirements.
VaporPlus Benefits
- Accommodates wet rooms of all sizes
- Simple timer operation (or easy to set humidistat)
- Optional remote monitoring capabilities allow for accurate on-demand humidity read-outs
- Does not require costly reverse osmosis water filtration
- Ease of installation
- Very low maintenance
- Industry-best 2-year warranty
- Certified by NSF169
VaporPlus will improve the operations of your construction testing facility by:
- Properly curing and storing concrete specimens
- Maintaining accurate humidity and moisture requirements for ASTM C511 specifications
- Reducing equipment needs and maintenance costs
- Eliminating costly water filtration
- Attaining high relative humidity levels (up to 100%)
- Increasing your return on investment
System Components
Filtration
Includes sediment removal and custom Corrigan 100% KDF anti-bacterial filter.
Air Atomizing Nozzle
Stainless steel nozzle produces fine vapor fog, won’t rust and resists clogging.
Timer Control
Flexible setting so preferred humidity level is easily achieved.
Compressor Unit
Low profile design for installation ease with adjustable water regulator for added humidity control.
VaporPlus Options
TriOBreeze™ Activated Oxygen Technology
Corrigan’s TriOBreeze is natural and chemical free, with no maintenance.
For customers who want to stop unwanted mold from growing in concrete moist rooms.
Using Corrigan’s activated oxygen (O3) technology with UltraMist effectively destroys the protective outside layers and replication capacities of molds, then converts back down to regular oxygen – leaving no toxic residuals.
Touch Screen Control
Controllers come in various configurations and can interface with existing controls. From simple one panel readouts to PLCs with HMI touch screen display and remote monitoring, control panels are specified to meet any application.
Patented dry fog technology to effectively humidify any size space.
Hydrafog™ DRH Benefits
- Cost effective small footprint
- Low maintenance alternative to open reservoir ultrasonic humidification
- Prevents electrostatic discharge (ESD)
- Controller with real-time monitoring capabilities
- Provides clean, healthy humidity to promote wellness and a comfortable environment
- 95% more energy efficient than traditional steam humidifiers
- Easy installation
